Taskbar

The taskbar on top of the screen is a permanent menu that contains the system menu and some other important information as well as a couple of shortcuts that are often needed.

The taskbar cannot be customized or moved to another location. The information seen in the taskbar changes depending on the user who is logged in and the window that is currently open.

Icon Description
Opens the system menu.
System This label/link changes depending on the window or application that is currently open. The drop-down menu offers the option to hide the selected window/application or hide all windows except the currently selected one.
Shows the currently logged in user.
Shows the date and time of the network drive.
Click to open the configuration menu for the dropbox function. This function is only available on certain models (e.g. MyCloud Pro).
Click to hide all open windows and show the desktop.
Click to display the disk information, showing all the drives that are currently connected (e.g. internal SATA drives, RAID array, external USB drive).
Click to show the attached USB drives. Select a drive from the list and click Eject to eject the attached USB drive(s), before you disconnect or turn off the USB drive(s).
If this icon appears, a new firmware update is available for download. Click to go to Preferences > Firmware.
Click to open the online manual at http://wiki.myakitio.com.
Shows the latest MyCloud related news from the AKiTiO blog. The pop-up window closes automatically after 5 seconds unless you hover over the window with your mouse pointer.

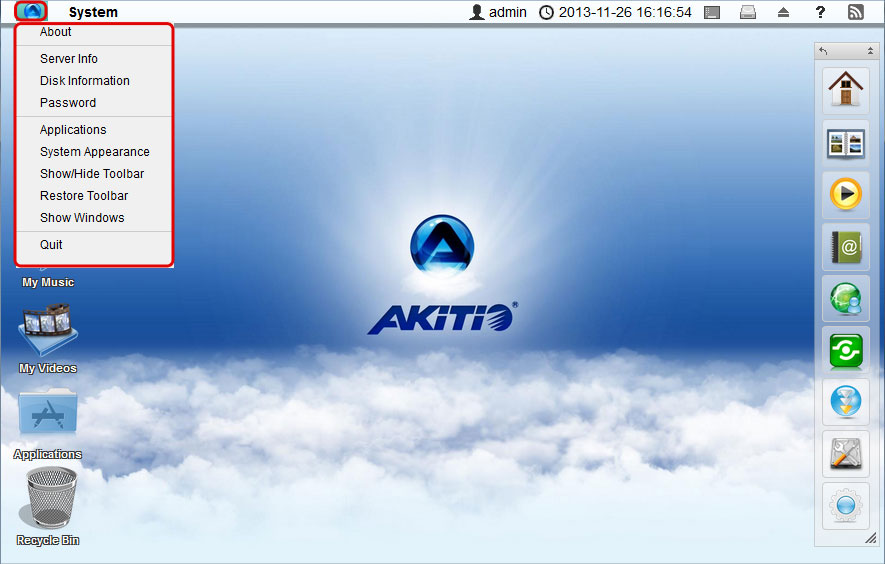

System Menu

Click on the AKiTiO logo in the top left corner of the screen to open the system menu.


About

Legal information about this software.


Server Info

All the important information about your network drive is displayed here. If you contact tech support, please refresh the data and include this information in your ticket or e-mail.

For more details, see Preferences > Server Info

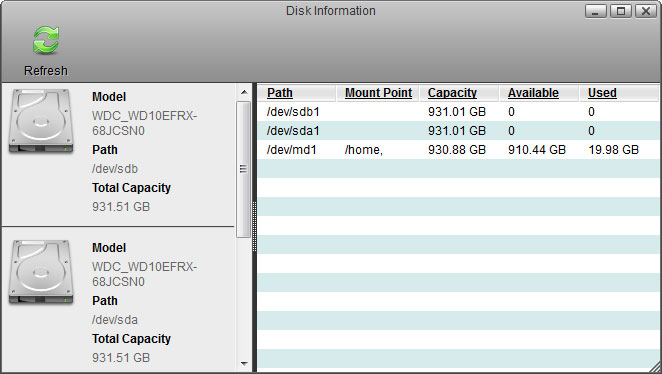

Disk Information

Shows detailed information about all the drives that are currently connected to the system (e.g. internal SATA drives, RAID array, external USB drive).

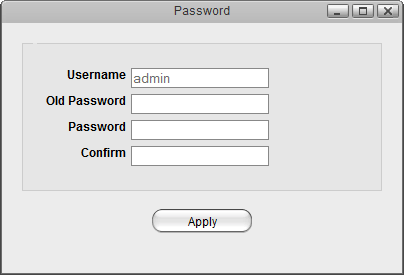

Password

To change the password of the currently logged in user, enter the old password, enter the new password twice and then click Apply to save the changes.

Applications

The applications folder contains all the built-in programs, available applications, default media folders and settings for the device. Double-click on any of the icons to open the application.


System Appearance

In this menu, you can customize your wallpaper, change the theme and select the language of the web interface.

systemmenu-systemappearance.jpg systemmenu-systemappearance-language.jpg

Field Description
Wallpaper Customize the wallpaper of your desktop. For more details, see Desktop > Wallpaper
Themes Select your preferred theme from the list of available designs. Please note that there is currently only one theme available, so there is no option to change this setting.
Language Select your preferred language for the web interface from the list of available languages.

Show/Hide Toolbar

Click to hide or show the toolbar.


Show Windows

Show all the windows that are currently open, both hidden and visible windows. Select any of the windows to open it.

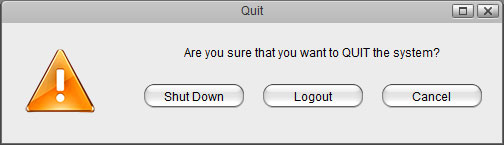

Quit

Select Quit to log out or shut down the system.


Field Description
Shut Down Click “Shut Down” and then choose:
  • Shut Down to completely turn off the system
  • Restart to reboot the system.
Logout Logout the current user from the web interface.
Cancel Abort and go back to the previous screen.
